LUNEX Script Example-02

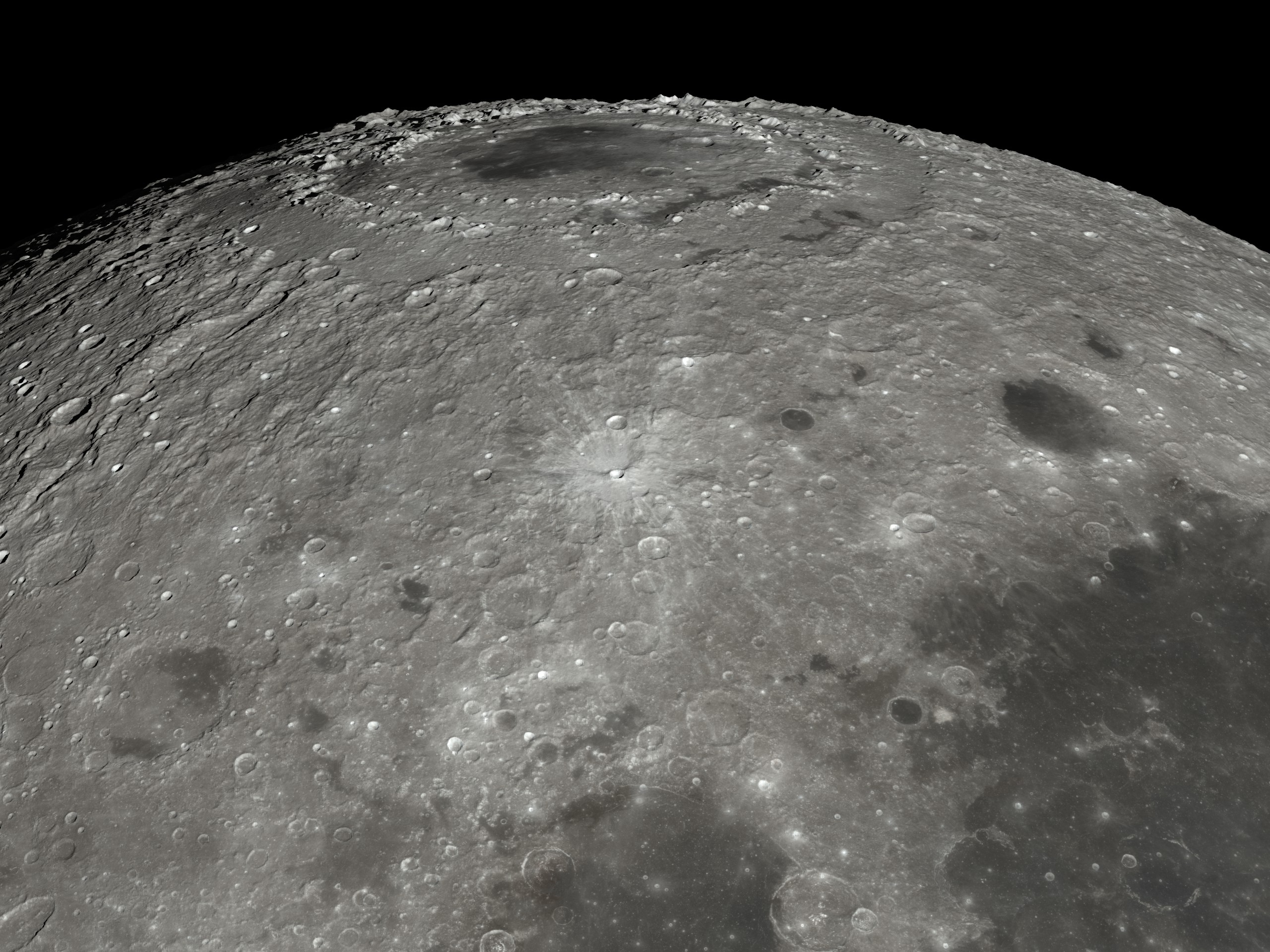

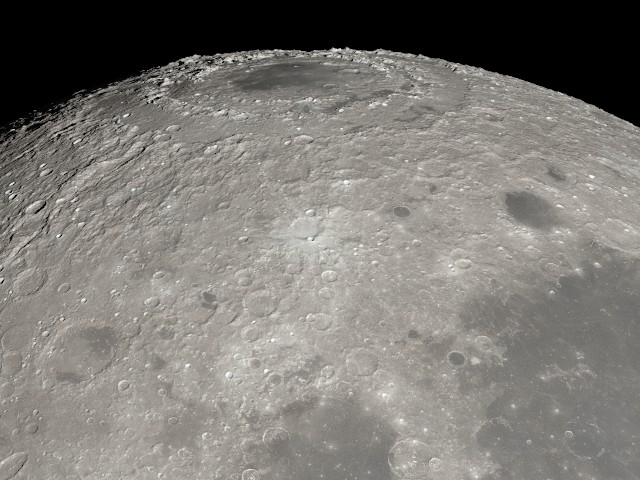

This is a view of Mare Orientale, the bright crater Byrgius and the dark basin Grimaldi, which is just visible from Earth on the limb of the western lunar hemisphere and part of Oceanus Procellarum.

Make a copy of the following file:
EMPTY-SCENE-TEMPLATE.pov
and then rename that copy to:
M-Orientale-Byrgius-Grimaldi-O-Procellarum.pov

Then, within that new M-Orientale-Byrgius-Grimaldi-O-Procellarum.pov file,
Copy/Paste the entire code below, replacing only the string:
XXX_YYY_ZZZ

After the Copy/Paste, it should then be ready to render
and the rendered image should have the PNG file name:

Double-Click Within Text Area to Select ALL Code


// ===========================================================================
// START OF SCENE DEFINITION PANEL             START OF SCENE DEFINITION PANEL
//
// DESCRIPTION:
// This is a view of Mare Oriental, the bright crater Byrgius, the dark basin
// Grimaldi, which is just visible from Earth on the limb of the western lun-
// ar hemisphere and part of Oceanus Procellarum.

// ----------------------------------------
// SET PATH TO SELECTED SURFACE TEXTURE MAP

  #declare SurfaceMap = "MAPS/lunar-surface-map.png";

// ---------------------------------------------------------------------------
// SET RENDER MODE   1=FAST 2D BUMP MAP  or  2=SLOWER FULL 3D ISOSURFACE

  #declare RenderMode = 2;

// ---------------------------------------------------------------
// SET CAMERA VIEW COORDINATES, DISTANCE, LOCATION, ZOOM FACTOR
// DEFAULT = GEOCENTRIC VIEW

// Camera selenographic coordinates at center of view.
  #declare CamLat  = -30.0; // -S/+N
  #declare CamLon  = -25.0; // -W/+E

// Camera distance in miles from center of moon.
  #declare CamDist = 100000; // 238856;

// Move Camera.
  #declare CamMoveLRX = +0000; // -Left / +Right
  #declare CamMoveUDY = +600; // -Down / +Up

// Rotate Camera.       +Clockwise
  #declare CamRotAngZ = -90.0;

// Camera Zoom Factor.   1=100%   Default=1
  #declare CamZoom = 3.0;

// -------------------------------------------------------------------
// SET RELATIVE LUNAR PHASE ANGLE AND EQUATORIAL ALTITUDE AND ROTATION
// 0=NM   90=FQ   180=FM   270=LQ   360=0=NM  Default=180

  #declare PhaseAng = 130.0;
  #declare PhaseAlt = +0.0; // Default=0  Range: -/+ 1.5

// Lunar Equatorial Rotation Angle    +Clockwise
  #declare MoonRotAngY = -45.0;

// ---------------------------------------------------
// SET SUNLIGHT / EARTHSHINE / SURFACE AMBIENCE LEVELS

  #declare SunlightLevel = 1.000; // Solar brightness level   Default=1
  #declare EarthshineLevel = 2;   // Earthshine level n/256   Default=2
  #declare SurfAmbiLevel = 0.000; // Surface ambience level   Default=0

// -------------------------------------------------------------
// SET OPTIONAL LOCATION MARKER SWITCH STATE AND RELATED OPTIONS
// Default pointer location = Tranquility base coordinates.

  #declare MarkSwitch = "OFF";     // Show location marker    Default=OFF
  #declare MarkLat    = +0.67409;  // Marker latitude
  #declare MarkLon    = +23.47298; // Marker longitude
  #declare MarkWidth  = 3.0;       // Marker top width        Default=3.0
  #declare MarkAmbi   = 0.025;     // Marker ambience level   Default=0.025
  #declare MarkColor  = rgb<255/255, 255/255, 000/255>; //    Marker RGB

// ----------------------------------------------------------
// SET OPTIONAL SWITCH TO APPLY 3D SHADED RELIEF - Default=ON

  #declare ReliefSwitch = "ON";

// ----------------------------------------------------------
// SET OPTIONAL -S/+N POLAR AXES DISPLAY SWITCH - Default=OFF

  #declare PolarAxSwitch = "OFF";

// ----------------------------------------------------------------------
// SET OPTIONAL AUTO-FIELD-OF-VIEW CONTROL SWITCH. THIS SETTING IS MAINLY
// TO ATTEMPT TO AUTOMATICALLY ADJUST FOR VERY CLOSE-UP CAM/EYE VIEWS AND
// REDUCE PIXELATION. Default=OFF

  #declare AutoFOVSwitch = "ON";

// END OF SCENE DEFINITION PANEL                END OF SCENE DEFINITION PANEL
// ==========================================================================
